Laser MarkingTechnology



Lasers engineered for applications that require high quality permanent marking

Find out more about our technology




Select a technology

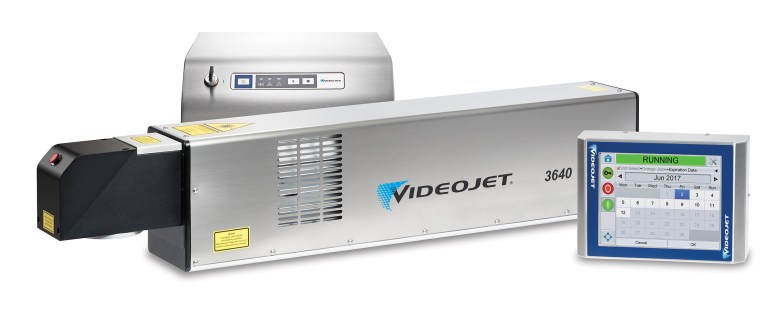

Videojet-3640-left-controller-screen

Videojet 3640

The 3640 is a 60-Watt CO2 laser marking system engineered to help address high volume and highest speed applications in the pharmaceutical, tobacco and beverage markets. It has been designed to process complex codes at high speeds, with the industry’s widest mark field.

Exceed current marking speed expectations on the production line with the Videojet 3640 laser marking system, engineered to process complex codes at highest speeds, with the industry’s widest mark field.




3140-pd-image

Videojet 3140

The Videojet 10-Watt 3140 CO2 laser marking system offers all of the performance features found in higher wattage lasers, but with a power source better matched for moderate line speed applications.

With print speeds up to 2000 characters/sec. and line speeds up to 900m/min, the 3140 laser is ideal for both simple and complex codes across a range of substrates including paperboard, glass, painted metal, paper labels, PET and other plastic materials.




3340-pd-image

Videojet 3340

Packaging operations that require high-quality, crisp codes for marking at high speeds can rely on the Videojet 3340 CO2 laser to help meet maximum throughput with consistent print quality.

With virtually no font, code or graphic restrictions and line speeds up to 900 m/min, the 3340 is an ideal solution for marking complex codes at high speeds in food, beverage, cosmetics, pharmaceutical and extrusion industries.

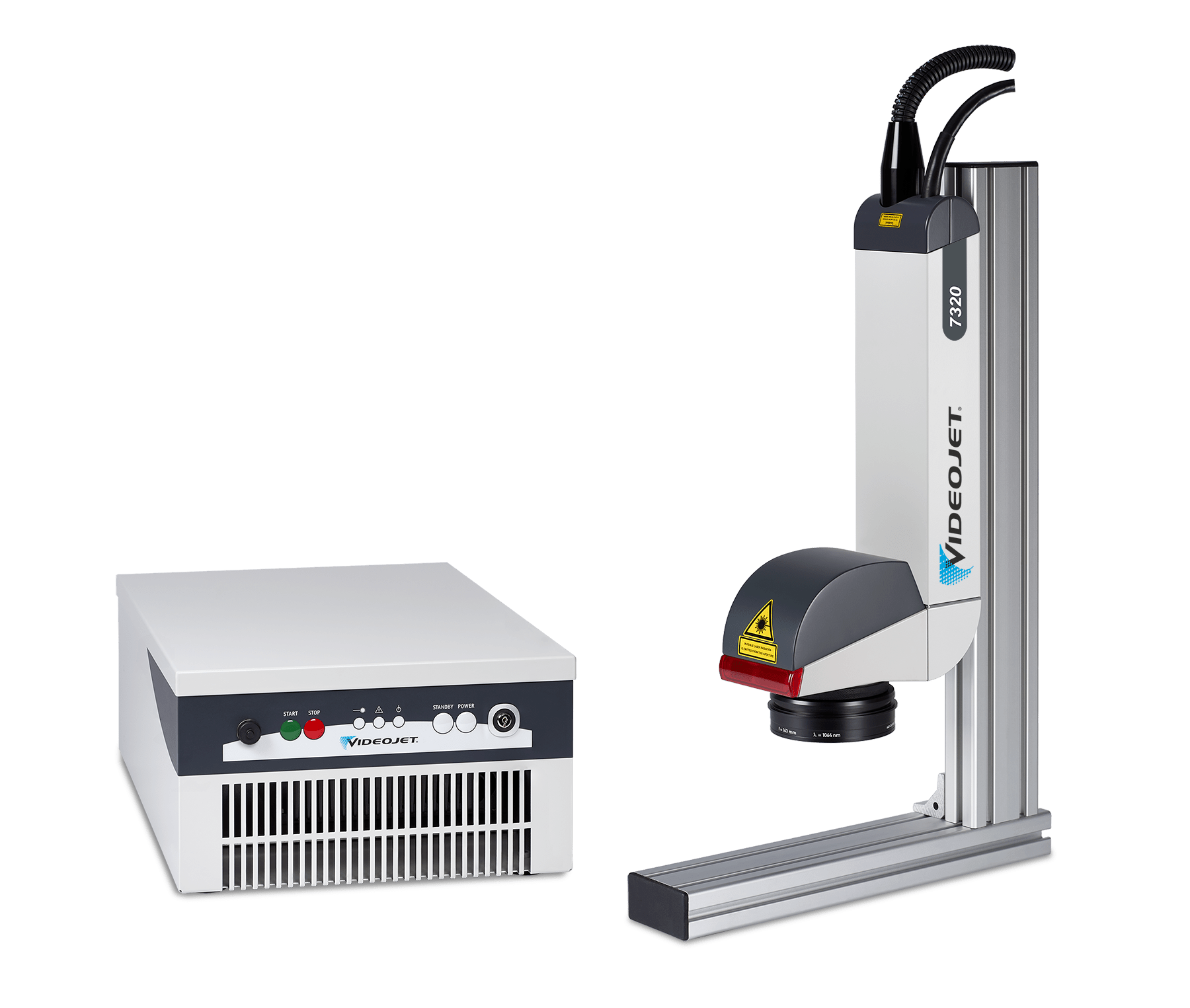

7320-laser-controller-no-background

Videojet 7220/7320

Small size. High-quality marks. Low maintenance. The Videojet 7220 (10 Watt) and 7320 (20 Watt) pulsed fiber lasers are the most compact, versatile and low maintenance solid-state marking systems available.

These laser marking systems are perfect for high contrast color change on plastic materials that CO2 lasers can engrave, or for ink ablation on plastic films that need precise control of heat to prevent damage caused by continuous wave lasers.




7610-7510-pd-image

Videojet 7510/7610

The Videojet 7510 50-Watt and Videojet 7610 100-Watt fiber laser marking systems deliver advantaged performance for high contrast marking on robust plastic packaging, metal containers and other industrial products even at ultra-fast line speeds up to 600m/min.

The 7510 and 7610 have been specifically engineered for high speed tobacco, pharmaceutical and extrusion manufacturers, delivering better mark quality, higher efficiency and a dramatically smaller marking unit than traditional solid state laser systems.

Touchscreen available on 7510 model only.






7810-pd-image

Videojet 7920

Packaging operations that require high-quality, traceable codes for camera readability can rely on the Videojet UV laser to help you meet industry regulatory requirements, such as the U.S. Food and Drug Administration’s Unique Device Identification (UDI). Direct marking of permanent codes helps prevent the risk of counterfeiting or manipulation to your product identification.

With Videojet SmartFocusTM technology, the 7920 ensures optimal code quality on various substrates. This UV laser marking solution also offers seamless integration, enhanced connectivity, and a 5-year warranty with SourceSecureTM.
