Videojet 7510 fiber laser marks on robust materials

Videojet 7510 fiber laser marks on robust materials

Laser Marking Systems

High-contrast marking at ultra-fast line speeds.

The Videojet 7510 50-Watt fiber laser marking system delivers advantaged performance for high contrast marking on robust plastic packaging, metal containers and other industrial products even at ultra-fast line speeds up to 600m/min. Specifically engineered for high speed beverage, pharmaceutical and extrusion manufacturers, the 7510 delivers better mark quality, higher efficiency and a dramatically smaller marking unit than traditional solid state laser systems.

And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and troubleshoot potential issues in ways that other printers can’t.

Contact us for New Equipment Sales: (866) 871-3226

×

Contact Us:

New Equipment Sales: (866) 871-3226
Service & Support: (800) 843-3610

Videojet 7510 Fiber Laser Marker

New Equipment Sales: (866) 871-3226

×

Request a Quote

Specs

Specification
Value
Laser TubeYtterbium (Yb) pulsed fiber laser
Maximum Power50-Watt
Laser CoolingAir Cooled
Maximum Line Speed600m/min (1960ft/min)
Environmental ProtectionMarking Unit: IP54
Supply Unit: IP21
Beam OutputSteered Beam
Laser Source Expected Life (MTBF)Up to 100,000 hours (MTBF)
Laser Wavelength Options1.06µm – 1.07µm
Focal Distance Options100/163/254/420mm (3.93/6.41/10/16.53in)
Maximum Mark Window498.5 x 366.5 mm (19.62 x 14.43 in)
Standard I/O ConnectivityInternal Terminal Connections
Standard User InterfaceSmartgraph PC software
Optional User IntefaceCLARiTY Laser Controller
Certifications/ApprovalsCE TUV

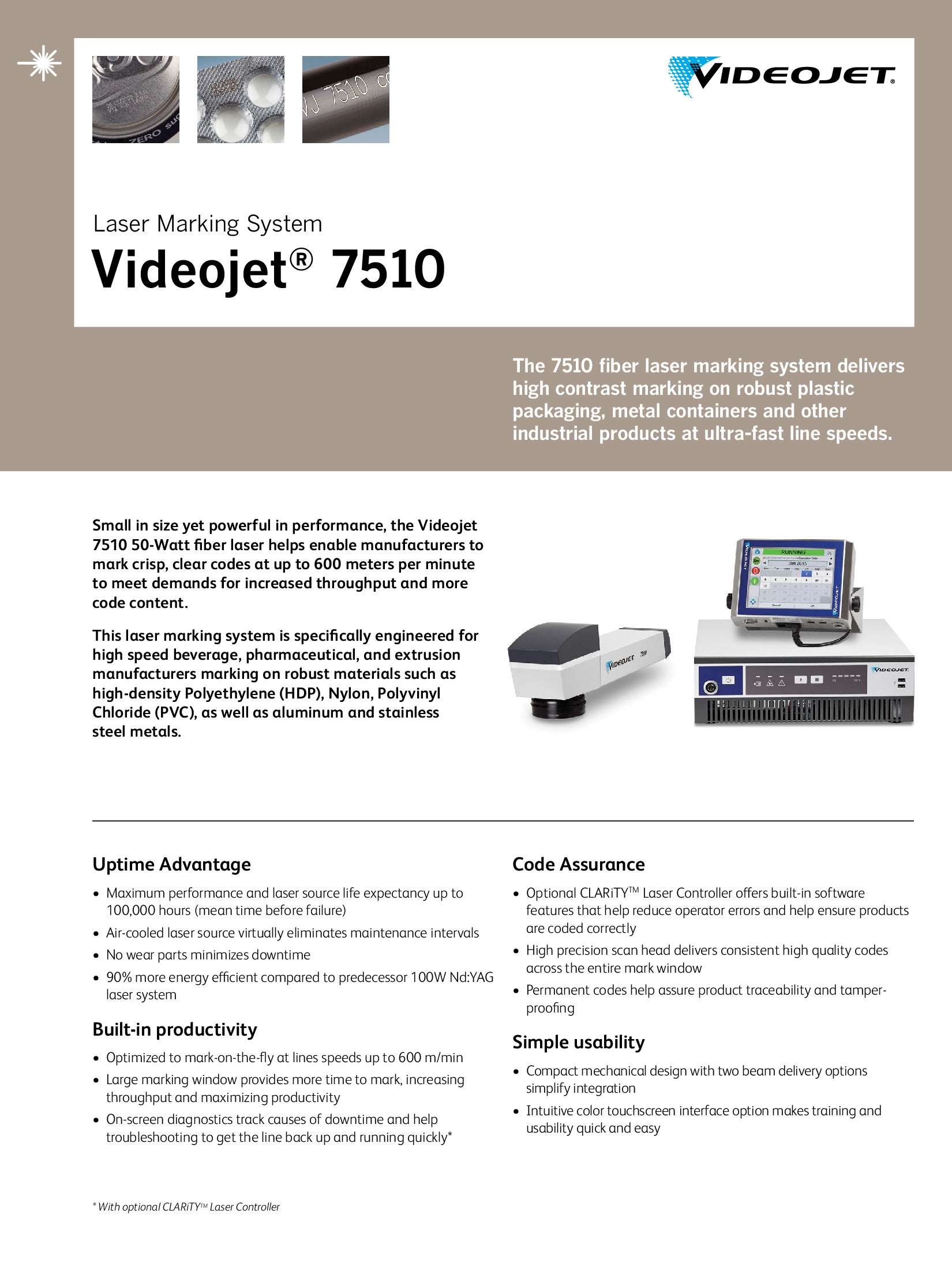

Download full spec sheet

Benefits

Uptime advantage through highly efficient laser source

  • Maximum performance and laser source life expectancy up to 100,000 hours (mean time before failure)
  • Highly efficient air cooled laser source virtually eliminates maintenance intervals
  • 90% more energy efficient compared to predecessor 100W Nd:YAG laser systems

Increase productivity and mark more content at higher speeds

  • Optimized to mark-on-the-fly at line speeds up to 440m per minute
  • Large marking window provides more time to mark, increasing throughput and maximizing productivity
  • CLARiTY Laser Controller features built-in productivity tools to help identify the root cause of downtime events and make sustainable process improvements

Mark the right codes time after time

  • High precision scan head delivers consistent high quality codes across the entire mark window
  • CLARITY Laser Controller uses built-in Code Assurance software to help prevent operator coding errors
  • Permanent codes help assure product traceability and tamper-proofing

Simple usability and seamless integration

  • Compact mechanical design with two beam delivery options simplifies integration
  • Intuitive color, touchscreen interface option makes training and usability quick and easy

“You just turn the switch on and it just works, every time.”
Operator – Automotive fluid storage, carrying and delivery manufacturer (case study)

Applications

Resources

Documents

Related Products

Videojet 7510 Fiber
Laser Marking Machine
Videojet 7610 Fiber
Laser Marking Machine

DescriptionSmall in size yet powerful in performance, the Videojet 7510 (50-Watt) and 7610 (100-Watt) fiber laser helps enable manufacturers to mark crisp, clear codes at up to 600 meters per minute to meet demands for increased throughput and more code content.
Shared specs– Commonly used for marking HDPE and LDPE plastics, PE and PPE plastics, synthetic fiber materials, acrylic, glass and silicone, and automotive and aerospace parts
– Air cooled
Max line speed600m/min (1960ft/min)
Max power50-watt100-watt
Wavelength options1.06µm – 1.07µm
Max mark window498.5 x 366.5 mm2 (19.62 x 14.43 in)
Certifications/approvalsCE, TÜV/NRTL, FCC, EACCE, TÜV/NRTL, FCC
