Videojet® DataFlex® 6530 & 6330 Thermal Transfer Printers

Videojet DataFlex® 6530 & 6330 Thermal Transfer Printers

Thermal Transfer Overprinters (TTO)

Videojet DataFlex® Industrial Thermal Transfer Printer

The 6530 and 6330 are part of the Videojet DataFlex® range of Thermal Transfer Overprinters (TTO), which are designed to give you a more productive operation. These Videojet printers embody the latest technology to further improve uptime while reducing time spent on quality checks, waste, and rework to drive productivity, quality and efficiency.

With built-in code quality checker iAssure™ technology, minimal wear parts, airless all-electronic operation, and fast-change ribbon cassette, the 6530 and 6330 offer maximized uptime advantage.

The DataFlex 6330 is a medium speed Thermal Transfer Overprinter and offers print speeds of up to 250 ppm*. It is available in two print widths, 32mm and 53mm, providing the best combination of printhead and ribbon width to deliver the most cost-effective solution for your application requirements.

The DataFlex 6530 is a high-speed Thermal Transfer Overprinter that can help improve uptime and provide a more productive operation by helping to reduce time spent on quality checks, waste, and rework. It is also available in two widths, 53mm with iAssure™ technology, and an industry first airless 107mm, to meet your specific application needs.

Engineered for applications such as vertical form fill and seal, the 6530 offers print speeds of up to 1000mm/s and throughputs up to 700 ppm.*

And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and troubleshoot potential issues in ways that other printers can’t.

*Application and substrate dependent

Contact us for New Equipment Sales: (866) 871-3226

×

Contact Us:

New Equipment Sales: (866) 871-3226
Service & Support: (800) 843-3610

DataFlex® 6530 and 6330

New Equipment Sales: (866) 871-3226

×

Request a Quote

Specs

Specification65306330
Printer ModeIntermittent and Continuous MotionIntermittent and Continuous Motion
Print GapConsistent 0.020″ (0.5mm) Consistent 0.020″ (0.5mm)
Ribbon Widths6530 (53mm): 0.8” (20mm),
2.2” (55mm) max
6530 (107mm): 2.2” (55mm),
4.33” (110mm) max
6330 (32mm): 0.8” (20mm),
1.3” (33mm) max
6330 (53mm): 0.8” (20mm),
2.2” (55mm) max
Bar Code PrintingEAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon requestEAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon request
Operator InterfaceTFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language supportTFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language support
Leader/Follower Capability (Up to 4 Printers Controlled by One User Interface)Up to four Videojet DataFlex® 6530 printers controlled via a single CLARiTY™ control unitUp to four Videojet DataFlex® 6330 printers controlled via a single CLARiTY™ control unit
Standard CommunicationRS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows™ drivers ZPL and SATO emulationsRS232, dual Ethernet, USB memory stick and scanner support, Binary and ASCII comms protocols, Windows drivers ZPL and SATO emulations
Web Browser CapabilityYesYes
Continuous Mode:
Maximum Print Area
(Width x Length)
6530(53mm): 2.1” (53mm) wide x 11.8” (300mm) long
6530 (107mm): 4.3” (107mm) wide x 11.8” (300mm) long
6330 (32mm): 1.3” (32mm) wide x 7.9” (200mm) long
6330 (53mm): 2.1” (53mm) wide x 7.9” (200mm) long
Maximum Print Speed39.4 in./sec (1,000mm/sec)29.5 in./sec (750mm/sec)
Minimum Print Speed0.04 in./sec (1mm/sec) 0.04 in./sec (1mm/sec)
Estimated Maximum Throughput (Single Line Code)6530 (53mm): Up to 700 prints per minute
6530 (107mm): Up to 450 prints per minute
6330 (32mm): Up to 250 prints per minute
6330 (53mm): Up to 250 prints per minute
Intermittent Mode:
Maximum Print Area
(Width x Length)
6530 (53mm): 2.1” (53mm) wide x 2.95” (75mm) long
6530 (107mm): 4.3” (107mm) wide x 2.95” (75mm) long
6330 (32mm): 1.3” (32mm) wide x 2.95” (75mm) long
6330 (53mm): 2.1” (53mm) wide x 2.95” (75mm) long
Maximum Print Speed6530 (53mm): 31.5 in./sec (800mm/sec)
6530 (107mm): 23.6in./sec (600mm/sec)
6330 (32mm): 29.5 in./sec (750mm/sec)
6330 (53mm): 29.5 in./sec (750mm/sec)
Minimum Print Speed0.4 in./sec (10mm/sec)1.6 in./sec (40mm/sec) full print quality; 0.4 in./ sec (10mm/sec) draft mode print quality

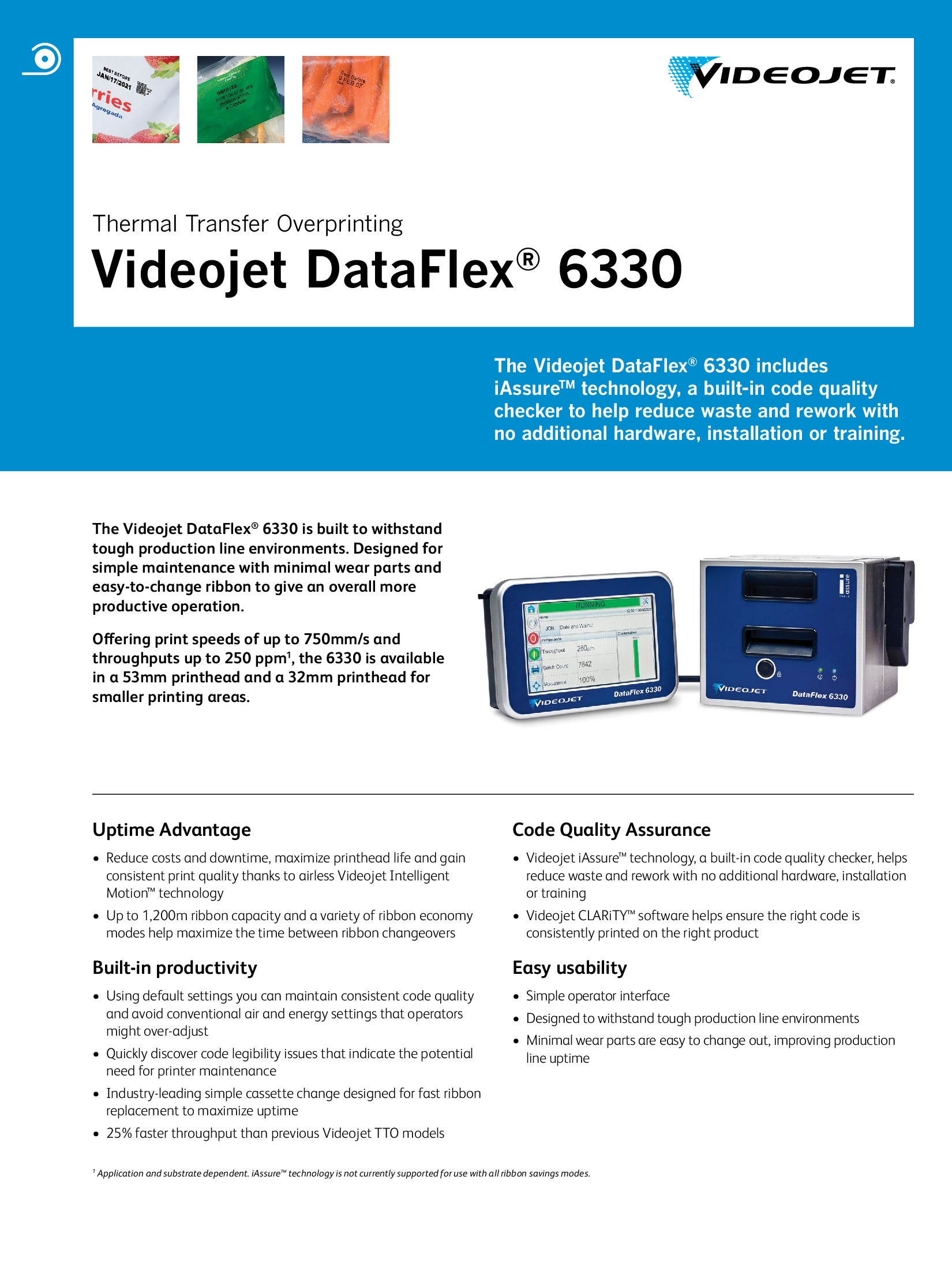

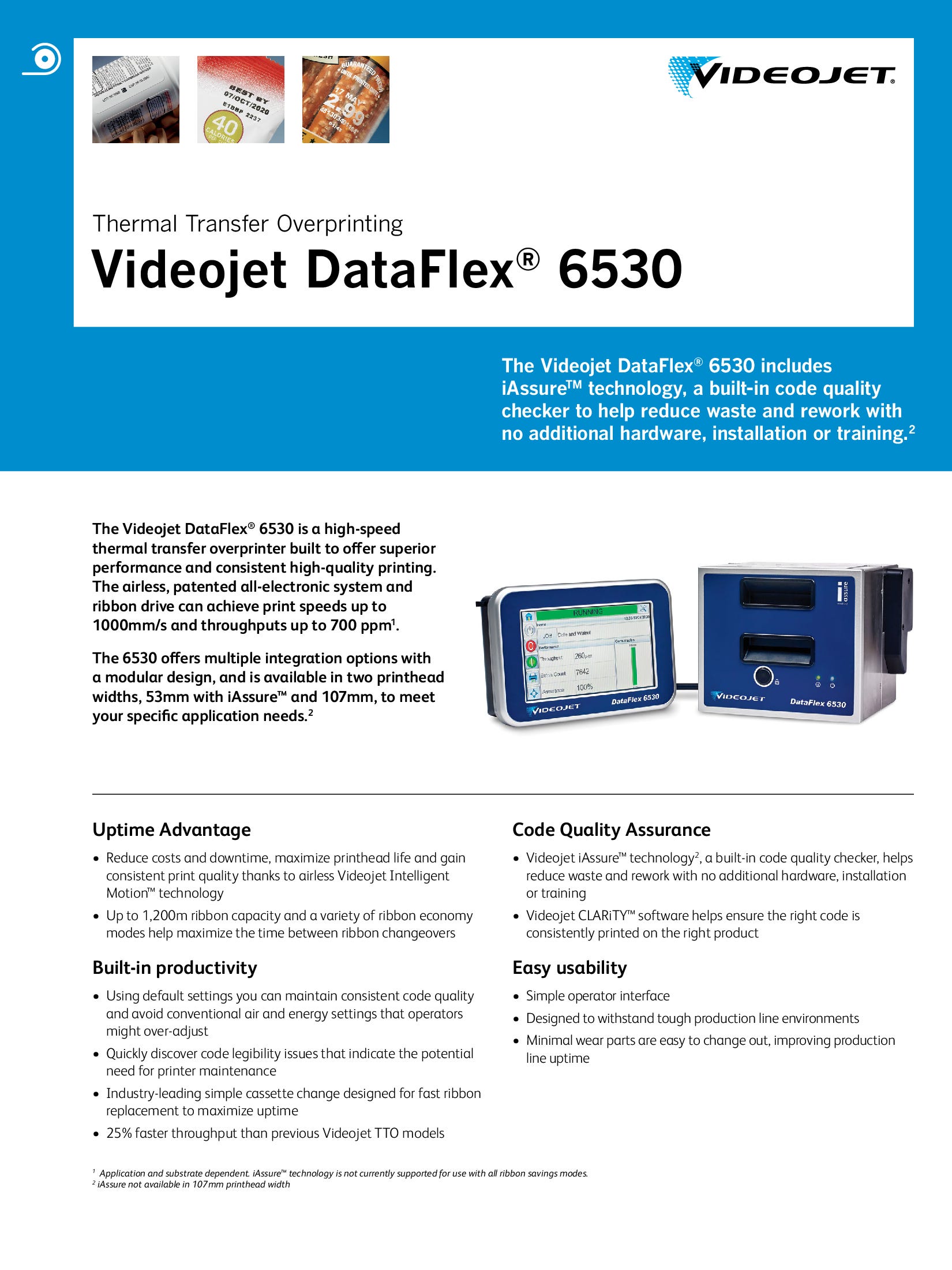

Download full spec sheet: 6530 or 6330

Benefits

Uptime advantage

  • Reduce costs and downtime, maximize printhead life and gain consistent print quality thanks to airless Videojet Intelligent Motion™ technology
  • Up to 1,200m ribbon capacity and a variety of ribbon economy modes help maximize the time between ribbon changeovers

Code Assurance

  • Videojet iAssure™ technology*, a built-in code quality checker, helps reduce waste and rework with no additional hardware, installation or training
  • Videojet CLARiTY™ software helps ensure the right code is consistently printed on the right product

Easy usability

  • Simple operator interface
  • Designed to withstand tough production line environments
  • Minimal wear parts are easy to change out, improving production line uptime

Built-in productivity

  • Using default settings and no factory air gauge, you can maintain consistent code quality and avoid conventional air and energy settings that operators might over-adjust
  • Quickly discover code legibility issues that indicate the potential need for printer maintenance
  • Industry-leading simple cassette change designed for fast ribbon replacement to maximize uptime
  • 25% faster throughput than previous Videojet TTO models

* iAssure not available in 107mm printhead width

“The screen on the previous thermal transfer printers we were using wasn’t easy to work with. Now all I have to do to change the code is tap the touch screen, create the price and then the expiration date. It takes only a minute.”
Steve Sneeringer – Machine Operator, Utz Quality Foods (case study)

“Videojet is rightly in a market-leading position with this device.”
Stefan Hertel Senior Project Manager, Zeppelin Systems (case study)

“That was one of the reasons why we decided on Videojet – because we need totally reliable printing including a very reliable printer with an extremely low failure rate.”
Stefan Hertel, Senior Project Manager, Zeppelin Systems (case study)

Applications

Resources

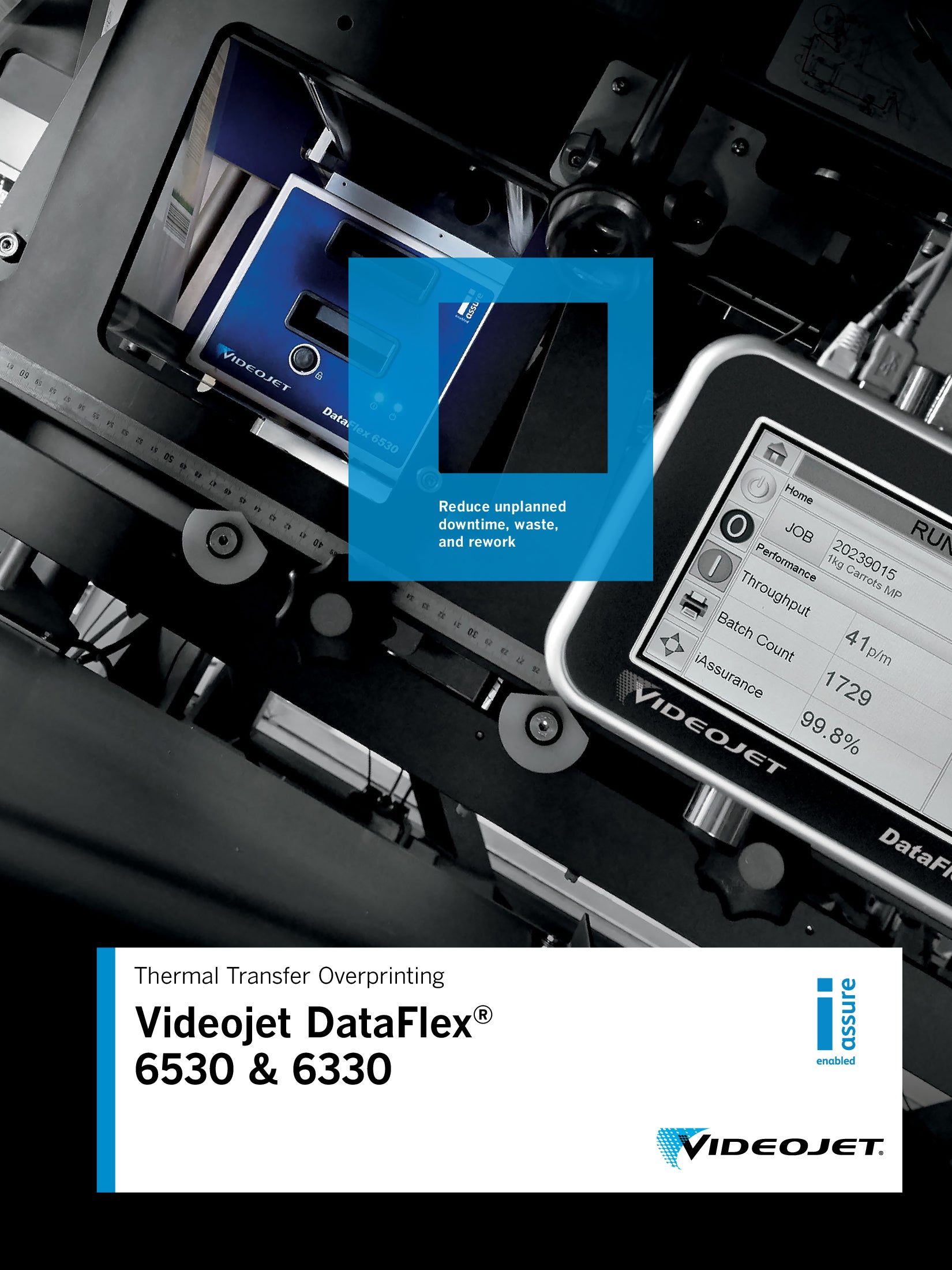

Documents

Videos

Vidyard Thumbnail
6530 and 6330 Product Video

Related Products

Videojet 6230
Videojet 6330
Videojet 6530
Printhead size32mm53mm107mm53mm32mm
Description Our cost-effective TTO printer that provides high-quality codes on flexible film.Our mid-range TTO printer with an airless printhead and iAssure, a built-in tool to check code quality.Our mid-range TTO printer with an airless printhead and iAssure, a built-in tool to check code quality.
Shared specs– Intermittent and continuous motion
– Consistent 0.020” (0.5mm) print gap
– Web browser capable
Ribbon widths20mm – 55mm
(0.8in – 2.2in)
55mm – 110mm
(2.2in – 4.33in)
20mm – 55mm
(0.8in – 2.2in)
20mm – 33mm
(0.8in – 1.3in)
Ribbon grades7 grades
Ribbon lengthsUp to 1200M
Bar code printingEAN 8, EAN 13, UPC-A, UPC-E, Code 39, EAN 128, Code 128, ITF, RSS (including 2D composite codes); others may be available upon requestEAN8, EAN13, UPCA, UPCE and QR codes
Operator interfaceTFT SVGA 800×480 full-color LCD and touch screen, WYSIWYG print preview, full on-board diagnostics, 3 levels of password protection, extensive language supportCLARiTY™ 5.0 inch color QVGA CSTN LCD and touch screen (800 x 480 pixels)
Leader/follower capabilityUp to four of the same Videojet DataFlex® printers controlled via a single CLARiTY™ control unit
