Videojet 9560 Print & Apply Labeling Machine

Specs

Specification	Value

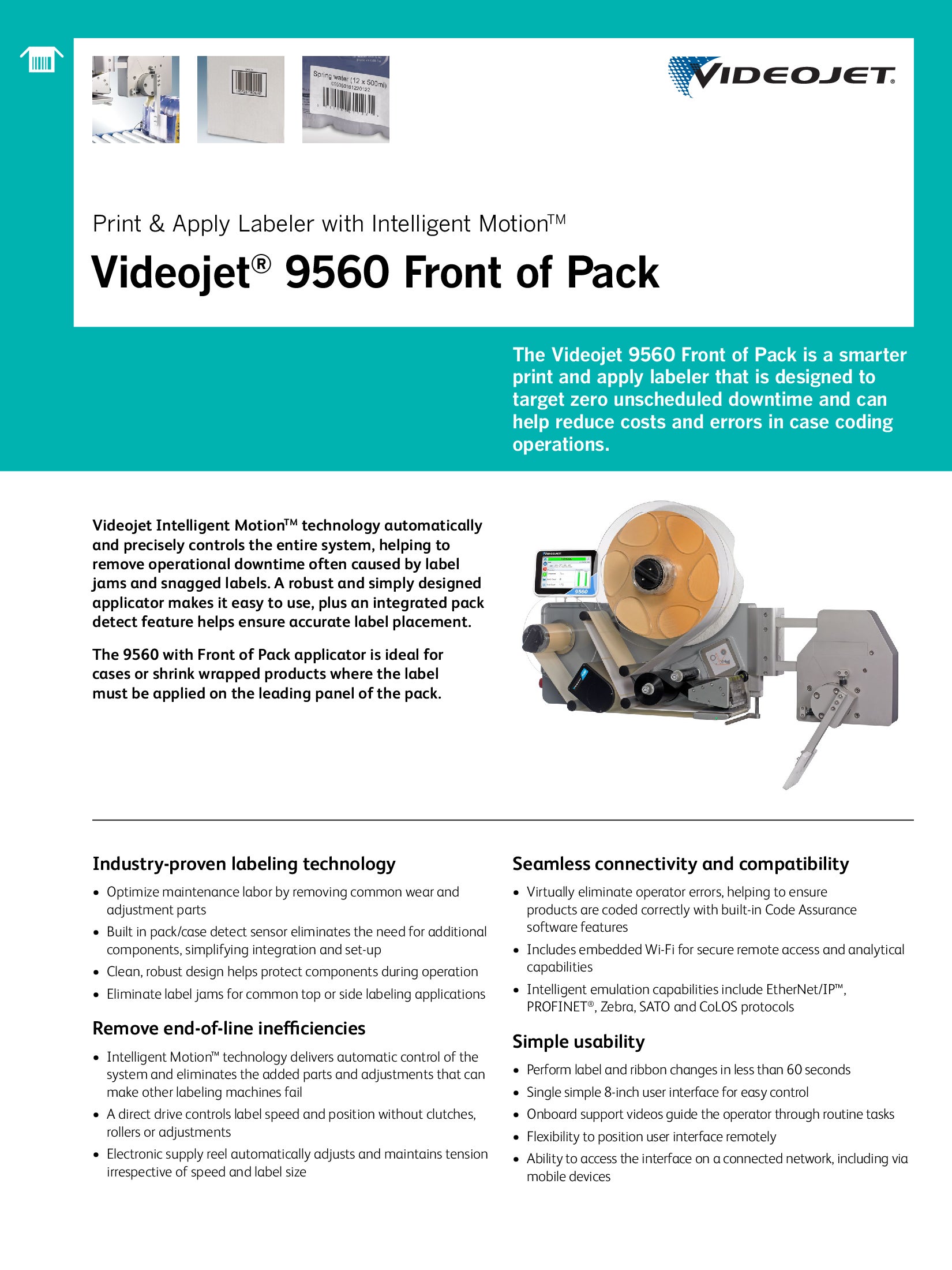

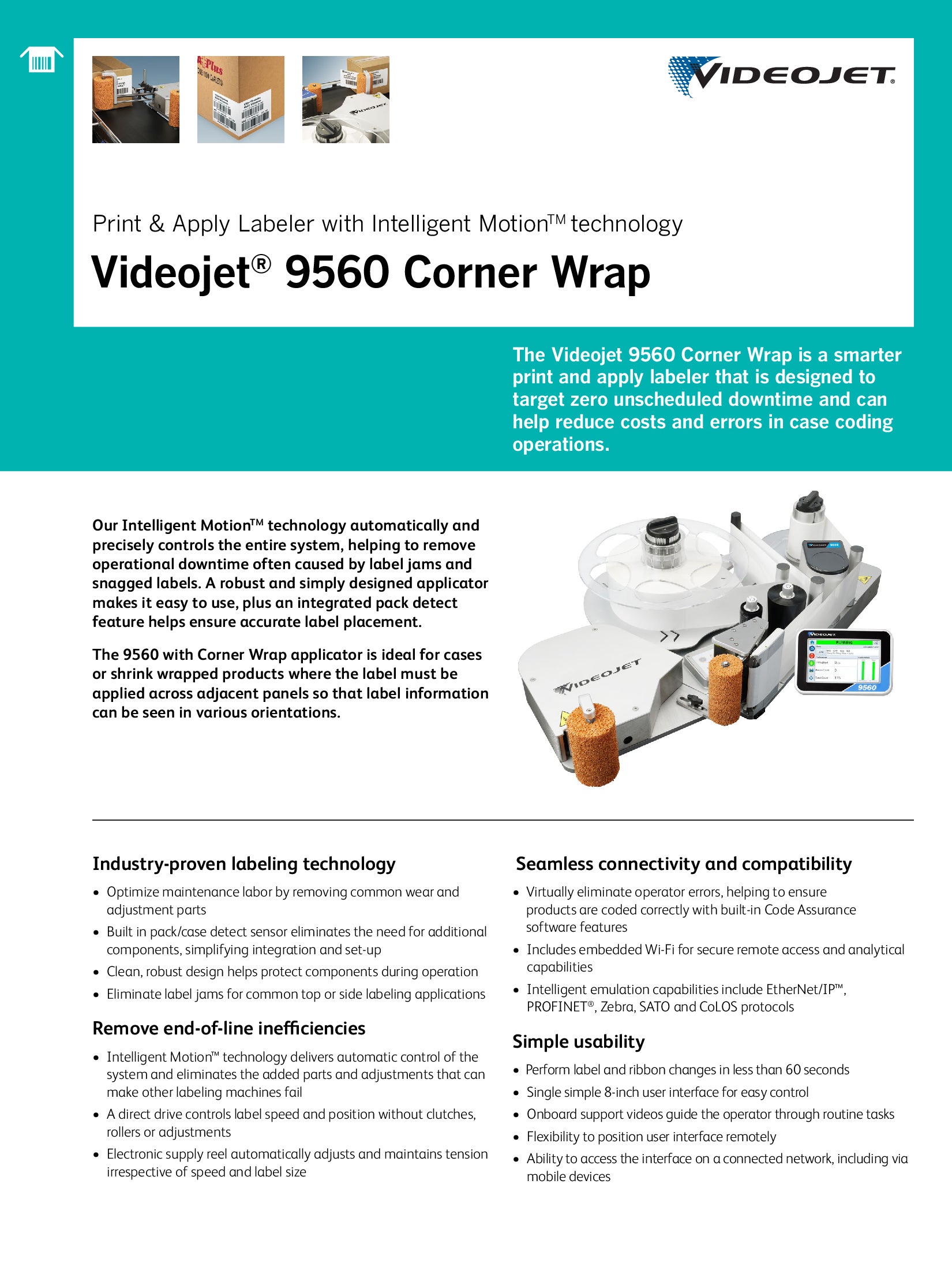

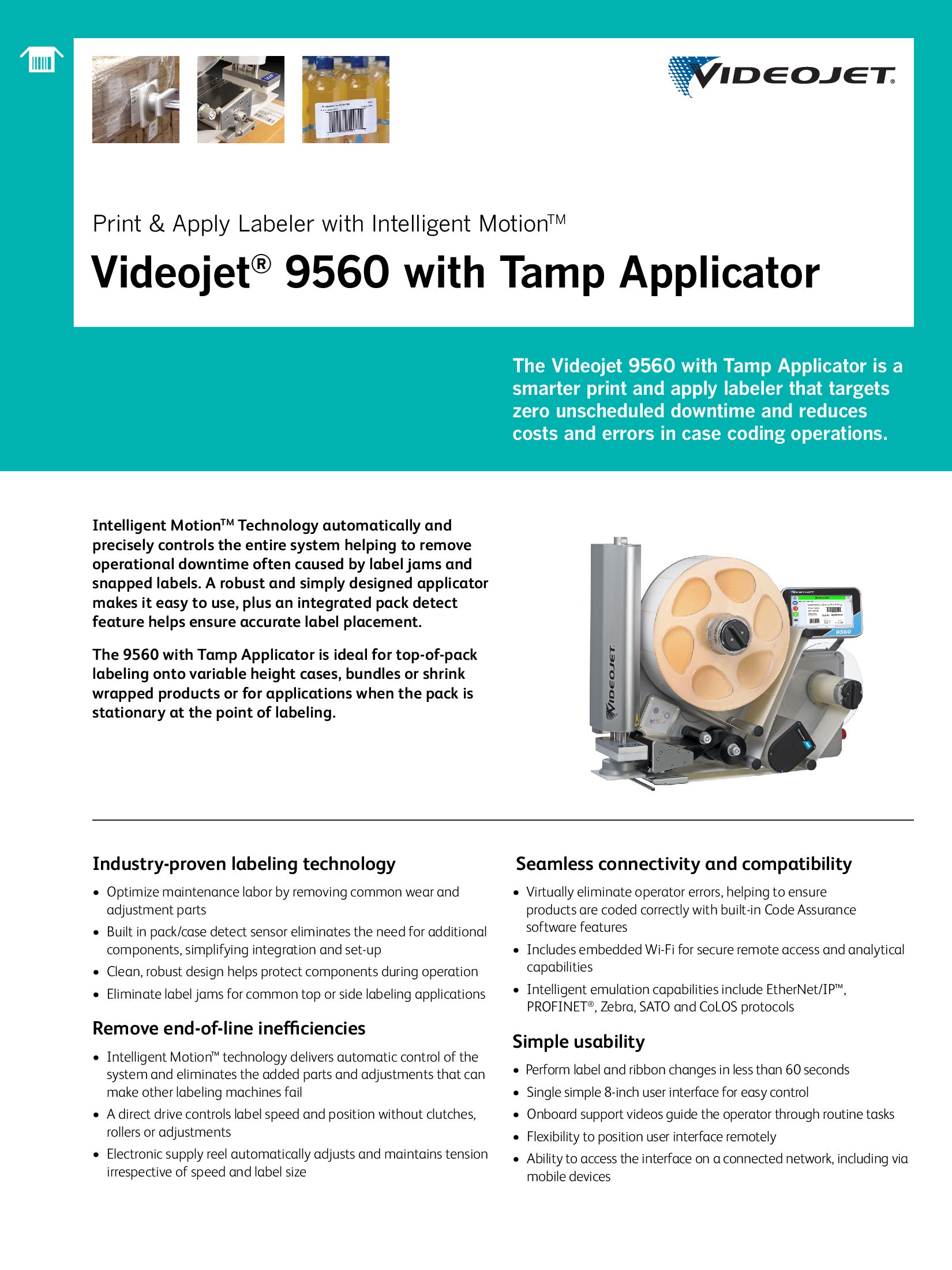

Application Method	Direct Apply (standard) with Intelligent MotionTM Label Drive Optional applicators: Front of Pack, Rear Corner Wrap, and Telescopic Tamp
Print Technology	Thermal Transfer printing with Intelligent MotionTM Ribbon Drive and Direct Thermal 53mm, 107mm, and 160mm printhead versions
Ribbon Width	Minimum 2.2” (55mm), 3.0” (76mm), 4.3” (110mm) (standard) and 6.4″ (162mm) / Up to 830m
Print Resolution	300dpi (200dpi in emulation mode)
Print Speed/ Throughput	<4” label width up to 500mm/sec in standard mode and up to 750mm/sec in high speed mode >4” label width up to 400mm/sec in standard mode up to 150 packs/minute with a 4”x6” label dependent on label size and application
Emulations	ZPL, SBPL
Label Width/Length/Capacity	Width/length: 1.6” to 6.5” / 2.0” to 11.8” (40 to165mm / 50 to 300mm) Up to 400mm spool diameter (typically delivers over 9000 typical GS1 bar code labels per roll)
Interface	CLARiTYTM Controller with interactive on-board video tutorials
Connectivity	Ethernet, RS232, Configurable I/O (24V, PNP and volt free) and USB
Certification	CE and TÜV

Download full spec sheet

Benefits

Experience the evolution of the industry’s proven Direct Apply Labeling system

• Eliminate label jams for common top or side labeling applications
• Up to 150 packs per minute (label size dependent) without the use of a tamp applicator
• Maintain throughput, even when the packs are accumulated
• No compressed air needed, eliminating both the installation cost and the ongoing running costs

Remove end-of-line inefficiencies and costs in your labeling operations

• Patented Intelligent Motion™ technology delivers automatic control of the system and eliminates the added parts and adjustments that can make other labeling machines fail
• A direct drive controls label speed and position without clutches, rollers or adjustments
• Electronic supply reel automatically adjusts and maintains tension irrespective of speed and label size from start to end of reel
• Printhead pressure is automatically regulated to help ensure optimum print quality and printhead life
• Precise ribbon control enables a clutch-less ribbon drive and ribbon save mode

Seamless connectivity and compatibility

• Switch to the 9560 without having to re-build previous job files and get up and running fast
• Simple and fast integration with OEM Packaging systems
• Includes embedded Wi-Fi for secure remote access and analytical capabilities
• The 9560 intelligent emulation capabilities include EtherNet/IP™, PROFINET®, Zebra, SATO and CoLOS protocols

Simple, efficient user interface, reducing risk of operator error

• Only one simple 8-inch user interface for easy control
• Onboard support videos guide the operator through routine maintenance tasks
• Reduce operator intervention with rapid job selection using bar code scanner
• Flexibility to position screens remotely
• Ability to access the interface on a connected network, including via mobile devices

Box label applicator for automated case & carton labeling

• Designed specifically for labeling boxes, shipping cases, and shrink wrap, the Videojet 9560 labeling system applies labels accurately at high speeds without plant air. Ideal for corrugated boxes used in food, beverage, logistics, and distribution environments.
• Print and Apply labels accurately to boxes for a cleaner, more consistent package appearance
• Help reduce misapplied labels, rework, and material waste across production lines
• Maintain throughput with automated labeling designed for fast-paced operations
• Support better barcode readability and traceability on corrugate and secondary packaging
• Lower manual handling and help reduce overall end-of-line labeling costs

Applications

Resources

Documents

Video

Related Products

	Videojet 210 Label Applicator	Videojet 9560 Print & Apply Labeler	Videojet 9560 PL Pallet labeling system
Description	Applies pre-printed adhesive labels to a wide variety of products in low to medium duty production environments.	Print and apply label technology featuring Direct Apply, Tamp, Front-of-pack, and Corner-wrap applicator. Includes industrial protocols and built-in WiFi.	Dedicated automated pallet labeling system that can cover two or three sides and up to four labels, processing up to 120 pallets per hour.
Printing technology	N/A	Thermal Transfer with 53mm, 76mm, 107mm, and 160mm printhead versions	Thermal Transfer with 60mm printhead
Throughput	Up to 150 packs per minute		Up to 2 pallets per minute
Max Line Speed	30m/min	45m/min	24m/min
Minimum Label Size (Width x Length)	12 x 12mm	40 x 50mm	150 x 100mm
Maximum Label Size (Width x Length )	104 x 500mm	165 x 500mm	175 x 210mm
Capacity	Up to 300mm spool diameter (optional 400 mm)	Up to 400mm spool diameter (typically delivers over 9000 typical GS1  bar code labels per roll)	Up to 330mm spool diameter
