Videojet 9560 PL pallet
labeling system

Specs

Specification	Value
Label Application Method	Telescopic tamp
Print Technology	Thermal transfer printing with Intelligent MotionTM Ribbon Drive and Direct Thermal 160mm printhead
Ribbon	Width: 5.9 – 6.5” (150 – 165mm) Capacity: Up to 500m, including automatic ribbon save (< 1mm ribbon gap between successive prints irrespective of label size or speed)
Print Resolution	300dpi (200dpi in emulation mode)
Print Speed	Up to 15.7in/sec (400mm/sec); speed is dependent on the application
Throughput	Up to 120 pallets per hour, based on two labels per pallet
Emulations	Zebra (ZPL), Sato (SBPL) and Markem-Imaje (Cimcomms) protocol support
Label Width/Length/Capacity	Width/length: 5.9 to 6 .9” / 4.0 to 8.3” (150 to 175mm / 100 to 210mm); A5/A6 Capacity: Up to 330mm spool diameter
Interface	CLARiTYTM Controller with interactive on-board video tutorials
Connectivity	Ethernet, Power-over-Ethernet, Configurable I/O (24V, PNP and volt free); 8 inputs and 6 outputs USB (for backup/restore and label upload), remote Control Videojet 9560 PL via a web browser
Certification	CE, TÜV

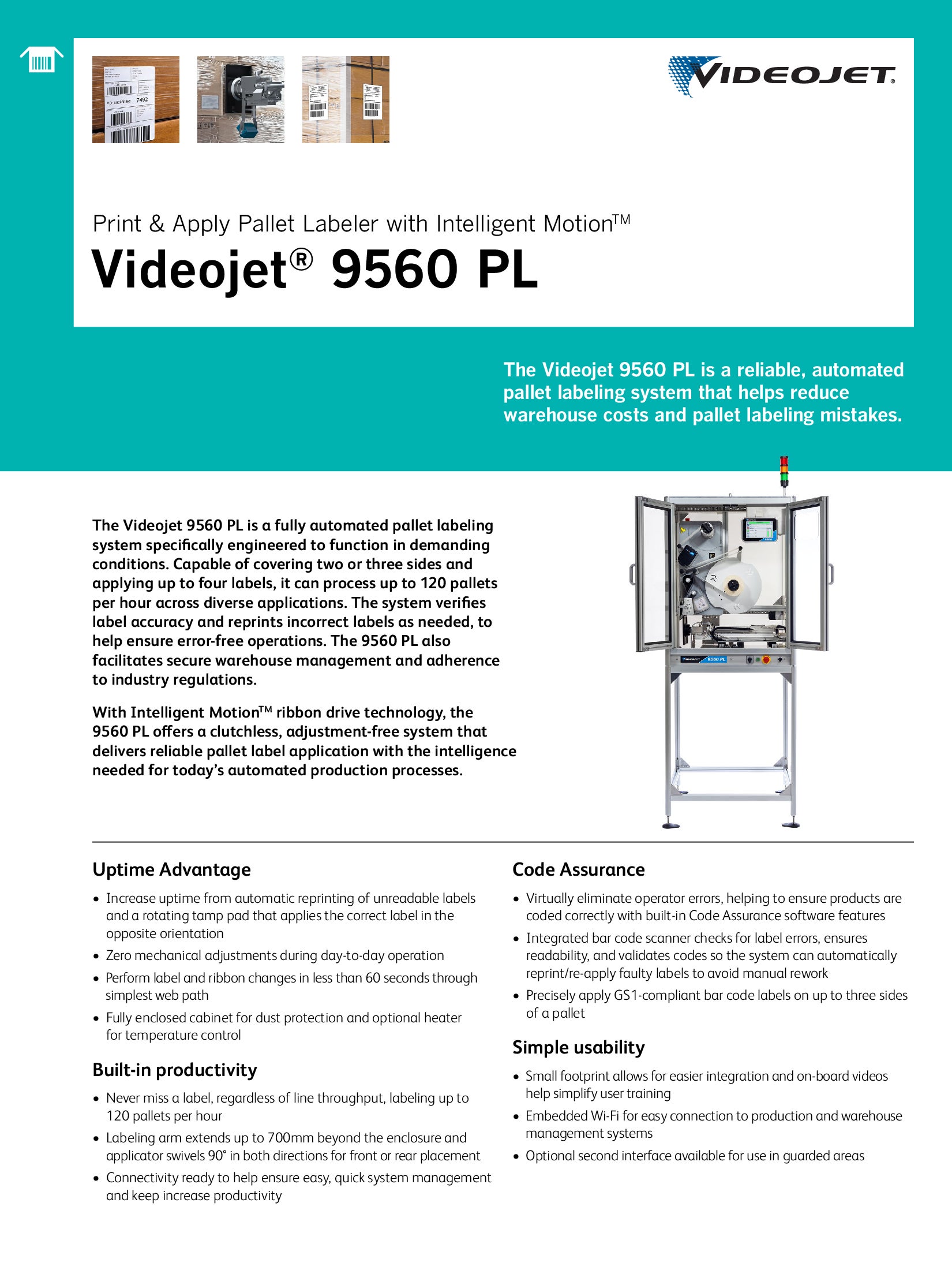

Download full spec sheet

Benefits

Pallet labeling to suit your application

• Rotating tamp pad with wrist joint provides firm label adhesion of up to four labels per pallet
• Label placement on up to three sides of the pallet helps you avoid logistic hold-ups
• Graphical User Interface helps to minimize errors and aids with troubleshooting, while onboard videos help to simplify staff training
• A fully enclosed climate-controlled cabinet helps protects labels from harsh environmental conditions, reducing label warping, deformation, and weak adhesion
• Thermal transfer labeling does not change color when exposed to sunlight, and can apply identical labels on up to three sides in compliance with GS1 specifications

A rugged and refined design

• Resilient construction and industry-low footprint mean you can put the 9560 PL almost anywhere
• Three stand height options add flexibility, with a labeling arm that extends up to 700mm beyond the enclosure, and label applicator that
  swivels 90^o
• An integrated bar code scanner checks for label errors, ensures readability, and validates codes

A reliable, next-level solution

• The advanced rotating tamp pad automatically corrects no-read labels caused by dead dots, reducing errors and downtime
• Intelligent Motion™ clutchless, adjustment-free technology enables precise control of all the design elements of the machine
• Label and ribbon replacements can be performed quickly, helping to avoid downtime and lowering the cost of operation

Connectivity-ready for seamless integration

• The 9560 PL offers intelligent I/O capabilities including EtherNet/IP™, PROFINET®, Zebra, and SATO protocols
• VideojetConnect™ software solutions help ensure data integrity, central code management, and easy printer connection across the entire plant
• Industry-leading CLARiTY touchscreen interface delivers intuitive job selection, code assurance, and built-in productivity tools
• VideojetConnect™ Remote Service* provides real-time information on printer issues, helping to monitor equipment status, troubleshoot issues, and improve long-term performance
• Web server capability allows customers to access the 9560 PL via supported web browsers on host computers, with up to five web server sessions per printer
• Available Wi-FI connectivity

*Subject to availability in your country

Supports your sustainability objectives

• Videojet’s comprehensive labeling solutions help you to reduce your environmental impact and optimize your supply chain while maintaining the highest levels of efficiency and reliability
• Intelligent Motion technology eliminates manual adjustments, increasing the overall equipment effectiveness of your line
• The Videojet labeling portfolio provides a range of sustainable labeling options to help you meet constantly evolving regulatory and sustainability requirements

Simple user experience

• Easy-to-navigate user interface with WYSIWYG job print preview
• Self-help onboard videos

Applications

Resources

Documents

Videos

Related products

	Videojet 210 Label Applicator	Videojet 9560 Print & Apply Labeler	Videojet 9560 PL Pallet labeling system
Description	Applies pre-printed adhesive labels to a wide variety of products in low to medium duty production environments.	Print and apply label technology featuring Direct Apply, Tamp, Front-of-pack, and Corner-wrap applicator. Includes industrial protocols and built-in WiFi.	Dedicated automated pallet labeling system that can cover two or three sides and up to four labels, processing up to 120 pallets per hour.
Printing technology	N/A	Thermal Transfer with 53mm, 76mm, 107mm, and 160mm printhead versions	Thermal Transfer with 60mm printhead
Throughput	Up to 150 packs per minute		Up to 2 pallets per minute
Max Line Speed	30m/min	45m/min	24m/min
Minimum Label Size (Width x Length)	12 x 12mm	40 x 50mm	150 x 100mm
Maximum Label Size (Width x Length )	104 x 500mm	165 x 500mm	175 x 210mm
Capacity	Up to 300mm spool diameter (optional 400 mm)	Up to 400mm spool diameter (typically delivers over 9000 typical GS1  bar code labels per roll)	Up to 330mm spool diameter
