Videojet® 4410 Commercial Addressing Printer

Commercial Printer with DOD Piezo Printing Technology for Mailing Applications

The Videojet 4410 inkjet addressing system utilizes piezo printing technology to deliver high print quality print on a wide range of materials at production speeds with minimal operator intervention.

Specification
Value
Printheads 1.0 in (25 mm), 2.0 in (51 mm), 3.0 in (76 mm) options
Vertical Print Area Up to eight printheads can be combined for up
to 24 inches of total print
Horizontal Print Area 39.5 in (1,003 mm)
Lines of Print Font dependent
Maximum Line Speed (1)
        1.0 in Printhead with Solvent Ink Up to 1,415 fpm (431 mpm) (1)
        2.0 in and 3.0 in Printhead with Solvent Ink Up to 985 fpm (300 mpm) (1)
        1.0 in Printhead with UV Ink Up to 1,270 fpm (387 mpm) (1)
         2.0 in and 3.0 in Printheads with UV Ink Up to 885 fpm (270 mpm) (1)
Inks Solvent and UV-based
Vertical Resolution 256 dpi
Operating System MS Windows XP SP2
Supported Data Formats Windows® TrueType® Fonts
Supported Graphics BMP, JPEG, WMF, TIFF, PCS, PDF Optional

(1) Maximum print speed is dependent on printhead size, DPI selected and ink type

High resolution printing on large variety of stocks:
  • Print on a wide range of stocks such as porous, glossy or plastics with UV or solvent based inks
  • Up to 400 x 660 dpi to meet your high quality requirements
Print on coated stocks at production speeds:
  • Instant-curing of UV ink once exposed to UV light
Enhanced software and I/O options with 4410 Controller Interface:
  • Full page PDF ripping
  • Read and print, Verification, Product Tracking

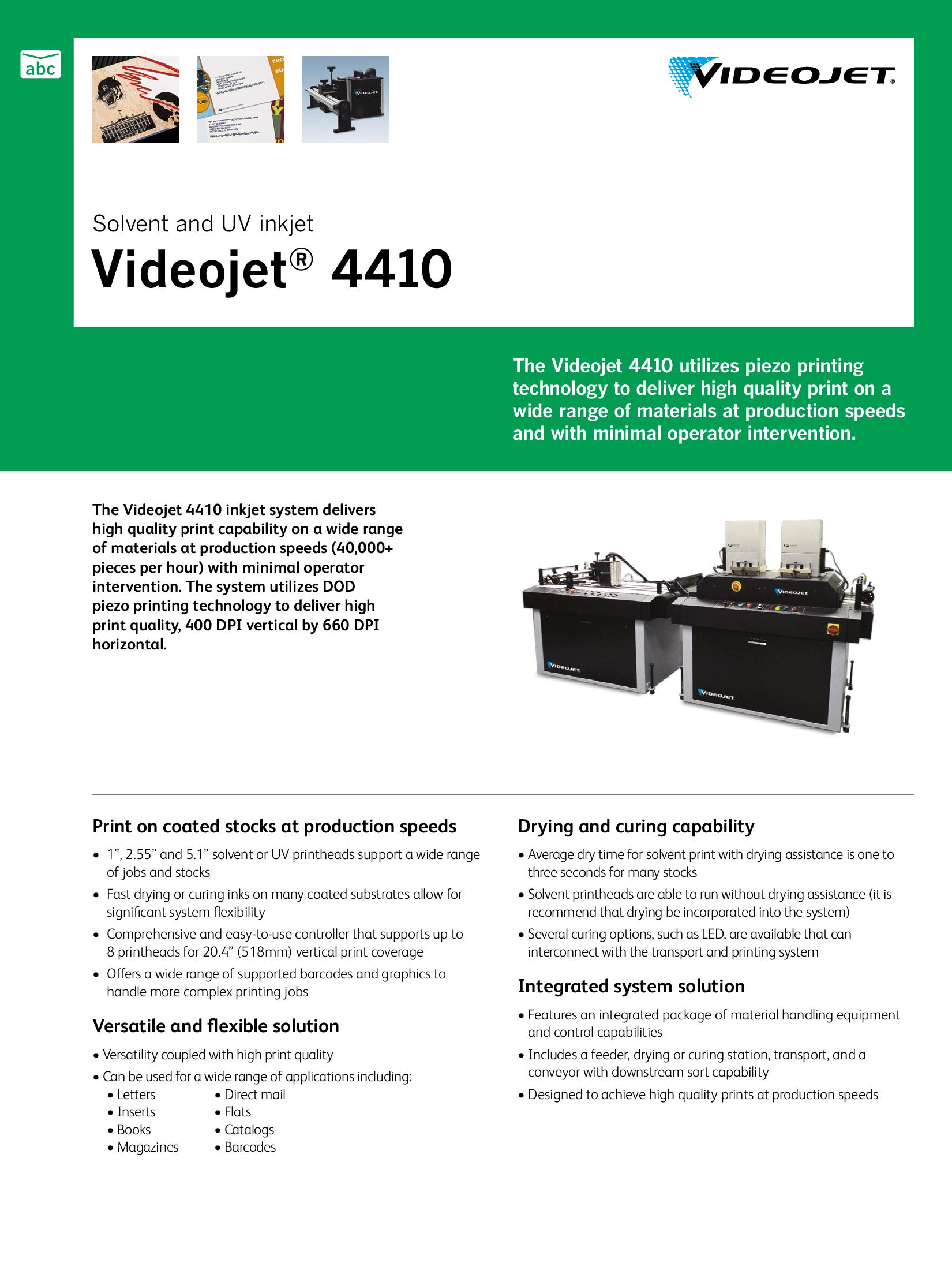

4410 Brochure
