Videojet 2351 and 2361 Box Printers
Large character marking (LCM) system
The Videojet 2351 and 2361 high-resolution, large character inkjet cardboard box printers provide class-leading, consistent print quality on porous and secondary packaging materials. These systems are designed and manufactured to reliably print durable, high-quality codes, bar codes and graphics—even on extended runs—with minimal intervention. Available in a range of printhead heights to best suit your printing needs, the Videojet 2351 and 2361 inkjet box printers replace preprinted boxes and labels with a highly flexible, cost effective print-on-demand solution.
Supplying products in cases/trays to a big box retailer like Walmart®? Learn how Videojet case coding solutions can help you meet requirements.
Contact us for New Equipment Sales: (866) 871-3226
Specs
| Value | |
| Print Speed | |
| Bar Code Printing | 0.3 – 66 m/min (1.0 – 216 ft/min) |
| Alphanumeric Text | Up to 132 m/min (433 ft/min) |
| Print Area (Height x Length) | |
| 2351 Model | 53 x 2000 mm (2.1 x 78 in) |
| 2361 Model | 70 x 2000 mm (2.8 x 78 in) |
| Printheads | |
| 2351 Model | 53 mm (2.1 in) high 180 dpi |
| 2361 Model | 70 mm (2.8 in) high 180 dpi |
| User Interface | CLARiTY™ 5.7 inch color LCD touch-panel |
| Data Interfaces | RS232, Ethernet, USB memory stick, select ZPL command emulation, Binary and text comms |
| Leader/Follower Functionality | Up to 4 printers |
Benefits
Uptime Advantage
- Consistent high-resolution text, logo and bar codes, even on extended runs and in dusty environments
- Innovative technology sustains superior print quality, without affecting production speed or throughput
- Ink-based system delivers fast start-ups and durable codes that can withstand the distribution chain
- Videojet LifeCycle Advantage™ can help our printer operate at peak efficiency over its operational life
- Non-pressurized, non-drip ink canister enables ink to be changed without stopping production
Built-in productivity
- Minimum intervention needed due to patented micro-purge process and unique return line filter that can be replaced in seconds
- Replace pre-printed cases and labels and print variable information on-line
- 180 dpi resolution allows for complete generic case coding at pre-printed quality
Code Assurance
- Videojet CLARiTY™ interface helps get the right code on the right place on the right product, time after time
- Simple, intuitive software reduces the potential for operator errors
- Easily set message parameters and limit operators to pre-specified data ranges to help avoid errors
- Use of Fluid ID Number (FIN) to virtually eliminate the possibility of the wrong ink being added
Simple usability
- Self-contained, highly-compact unit safes space and integrates easily
- Top-oriented display provides preferred viewing angle and flexibility when mounted on a conveyor line
- Multiple printers can be operated from a single leader unit, or can be controlled remotely from a central location
- Simple UI driven internal priming process virtually eliminates the need for external priming devices
“The Videojet printers easily integrate with our processes because they are durable, reliable and easy to use, even when we run them 24 hours per day, up to six days per week.”
Bob Manzer – Plant Manager, Kettle Foods (case study)
“Crisp, clear codes are important to both our company and our distributors for tracking and tracing, warehousing and inventory, reordering, billing, and order fulfillment. It’s all interrelated. Today, that’s how companies identify the product, store it, inventory, pick and verify orders, ship and bill. Clear codes set the tone for the entire supply chain process.”
Jim Trivelis – President, The Original Philadelphia Cheesesteak Co. (case study)
“The automatic micro-purge system is really quite ingenious: no more non-productive downtime for cleaning!”
Jean-Christophe Bourgeois, Winery Manager Henri Bourgeois (case study)
Applications
Resources
Documents
Brochure: 2351 and 2361 printers
Spec Sheet: 2351 and 2361 printers
2300 Series Print Sample Guide
Henri Bourgeois Case Study

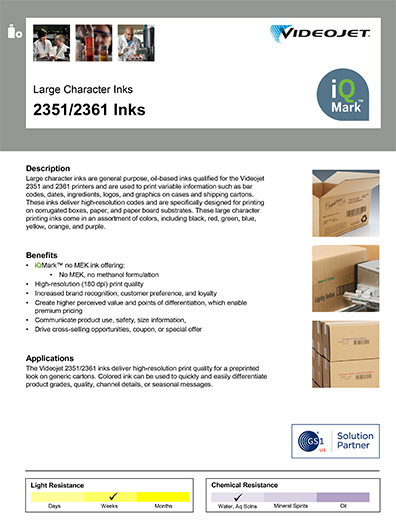

Spec Sheet: 2351/2361 Inks
Spec Sheet: LCM ink M533
Pre-print vs. In-Line White Paper
Converting to digital printing for more efficient case coding
Upgrading to modern pulp and paper printing solutions
Product Traceability Initiative
Philadelphia Cheesesteak Case Study
Video
Related Products
Unicorn | Unicorn II | 2120 | 2351 | 2361 | |
| Description | A compact, complete inkjet solution for large character, single line case coding. | A compact inkjet printer that provides high quality, reliable and economical large character printing of one or two lines. | This valve jet printer brings modernization and intergation to customer applications . With it ethernet IP and other connections capabilities, it will bring simplicitiy to any labelling needs. | High resolution printing made simple. With 53mm of addressable height, this printer is perfect for your low cost alpha-numeric and bar code needs. | Smart cleaning technology at its best with a printer that takes care off its self. Introducing our auto clean LCM printer. Maximize your text line inputs along with exceptional bar code capabilities. |
| Print resolution | Low resolution | 180 dpi | |||
| Print speed | 6.1 to 61 m/min (20 – 200 ft/min) | Up to 132 m/min (433 ft/min) | |||
| Print heights | Standard Print Height: 3/8 inch (10mm) Optional Heights: 5/16 inch (7.9mm); 1/2 inch (12.7mm); 3/4 inch (20mm) | Standard print height: 1.0 inch (25mm) Optional heights: 0.75 inch (20mm), 1.25 inches (32mm), 1.9 inches (48mm) | 53 x 2000 mm (2.1 x 78 in) | 70 x 2000 mm (2.8 x 78 in) | |
| Message length | Up to 40 characters | ||||
| Message storage capacity | Up to 52 messages | Up to 40 messages | |||
| Leader/follower capability | N/A | Up to 4 printers | |||
| Ink | 0.23 L (8 fl oz) non- aerosol ink bottle 3 porous inks, 4 non-porous inks | 0.23 L (8 fl oz) non- aerosol ink bottle 18.9 L (5 gallon) bulk ink option 3 porous inks, 4 non-porous inks | 2 porous inks, 5 non-porous inks | 8 inks including MOF inks | |
