Videojet + Cognex
1D / 2D Barcode Reader
High-powered Integrated Torch (HPIT)
Enhanced code reading with a single click

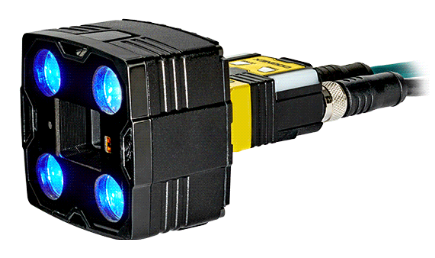

Cognex’s high-powered integrated torch (HPIT) enables operators to toggle between red, white, blue, and green lighting options. This helps ensure users have the right lighting for the right application by providing optimal contrast, no matter the operating environment. Multicolor lighting can also serve as a performance indicator, delivering immediate color-coded operator feedback.
Omnidirectional Code Reading

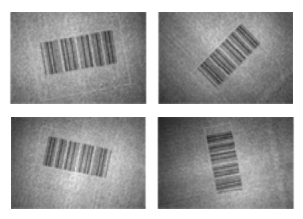

Omnidirectional code reading allows image-based barcode readers to accurately scan barcodes from any angle within a single view, eliminating the need for multiple laser scanners.
Lenses and Lights

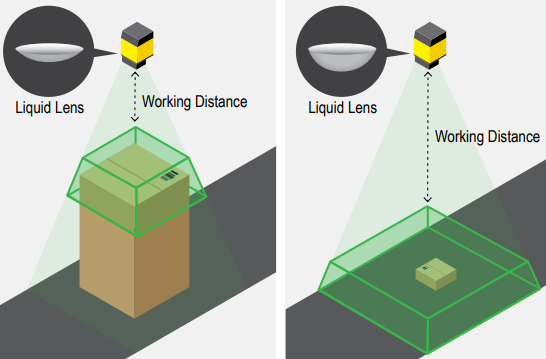

High-quality image-based barcode readers feature advanced optics with multiple lens options, including autofocus or liquid lens technology, to automatically adapt to varying working distances.
Print and Marking Presence/Absence
Improve quality and optimize production efficiency
- Take a photo of the text
- Process the image and calculate the amount of marking on the product
- Compare the amount of marking with a threshold reference
Consumer Confidence

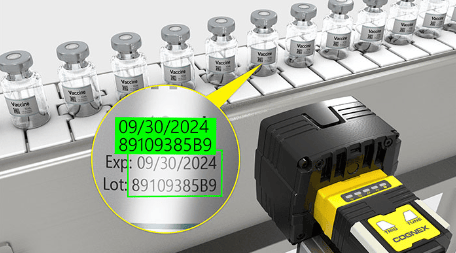

Enhance product quality and maintain brand integrity by ensuring complete print information and code presence, coupled with a 100% quality inspection before market release.
Setup made easy
Minimize setup time with integrated SKU/article management and a user-friendly interface for easy threshold configuration.
Communication and connectivity
Streamline code management and reduce human error with centralized, integrated control of marking systems and multi-device setups via the Vision controller.
Production Efficiency
Improve efficiency and reduce costs with fast, reliable setup, enhanced OEE, and traceable quality through end-of-batch reports.
OCR / OCV

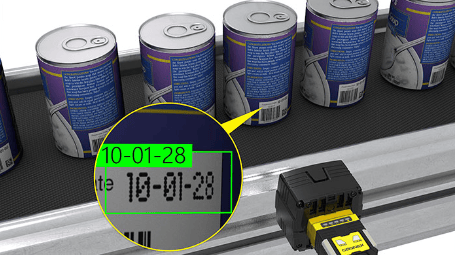

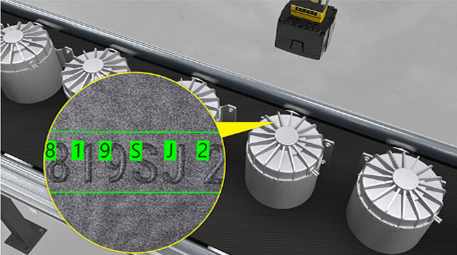

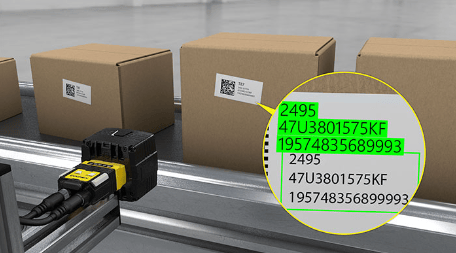

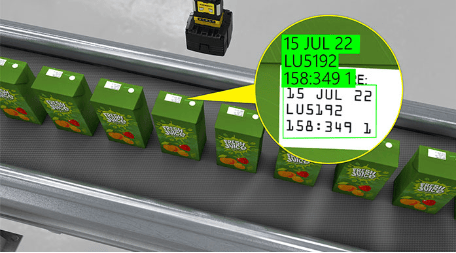

Advanced optical character recognition deciphers a range of text
The AI-enhanced edge learning read tool enables easy reading of characters on challenging surfaces, requiring minimal training with just a handful of sample images for effective deployment.
Comprehensive vision tool set addresses tasks of varying complexity
The In-Sight 2800/3800 series combines AI with rules-based tools in one system for versatile error-proofing applications, allowing individual or combined use for tasks ranging from simple to complex.
ViDi EL Read
The ViDi EL Read tool utilizes AI-based OCR to interpret diverse texts and fonts, excelling with multi-line text on difficult backgrounds and allowing rapid deployment with two training modes for both straightforward and intricate character reading applications.
Specification
- DataMan 282X
- In-Sight 2801M
- In-sight 3801M
| Specification | DataMan 282X |
|---|---|
| Algorithms and Technologies | 1DMax, 2DMax, Hotbars, PowerGrid |
| Image Sensor | 1/2.8″ CMOS |
| Image Sensor Properties | Diagonal 6.17 mm, 2.8 μm square pixels |
| Image Resolution | 1920 x 1080 pixels |
| Electronic Shutter Speed | Min. exposure: 29 μs Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination) |
| Acquisition | Up to 45 Hz |
| Lens Options | 8 mm, 12 mm, or 16 mm High Speed Liquid Lens |
| Trigger and Tune Buttons | Yes, with Quick Setup Intelligent Tuning |
| Aimer | Laser cross pattern (class 2) |
| Discrete Inputs | 2 opto-isolated, 2 configurable |
| Discrete Outputs | 2 opto-isolated, 2 configurable |
| Other I/O Points | 2 user configurable as inputs or outputs |
| Status Outputs | 5 status LEDs, audible beeper, 2 visual indicator lights, 4 HPIT light color options |
| Lighting | HPIT: 4 multi-color LED lights (red, green, blue, and white) Optional bandpass filters. Front cover options: clear, diffused, polarized and dome. |
| Communications | Serial and 1 GB/second Ethernet interface, USB-C, and keyboard capability |
| Protocols | RS-232, TCP/IP, PROFINET(class B), EtherNet/IP™, SLMP, Modbus TCP, NTP, SFTP, FTP, MRS, CC-Link Java Scripting enabled for custom protocols |
| Power | 24V +/- 10% |
| Power Consumption | ≤7.5W |
| Material | Zinc alloy/aluminum |
| Weight | 290 g Right angle configuration adds 50g |
| Dimensions | Straight configuration 6.2 mm: 75.5 x 42.4 x 23.6 mm Straight configuration 16 mm: 90.6 x 42.4 x 23.6 mm Right angle configuration 6.2 mm: 78.5 x 42.4 x 37.8 mm Right angle configuration 16 mm: 78.5 x 42.4 x 52.9 mm |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Storage Temperature | -10–60 °C (14–140 °F) |
| Operating and Storage Humidity | <95% non-condensing |
| Protection | IP67 |
| RoHS Certified | Yes |
| Approvals | EU [CE], US [FCC], TUV, CB, NRTL, IEC 61010, Korea [KCC], India [BIS] |
| Working Distance vs. FoV (12mm lens) | Minimum: 300mm w. FoV = 141mm x 79mm Midpoint: 750mm w. FoV = 343mm x 193mm Maximum: 1200mm w. FoV = 545mm x 306mm |
| Working Distance vs. FoV (8mm lens) | Minimum: 300mm w. FoV = 223mm x 125mm Midpoint: 750mm w. FoV = 526mm x 295mm Maximum: 1200mm w. FoV = 828mm x 466mm |
| Specification | In-Sight 2801M |
|---|---|
| Image Sensor | 1 /2.8″ CMOS monochrome and color |
| Image Sensor Properties | 6.17 mm diagonal, 2.8 µm square pixels |
| Image Resolution Options | 1.6 MP (1440×1080) |
| Electronic Shutter Speed | Min. exposure: 29 μs Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination) |
| Acquisition | Up to 45 Hz |
| Lens Options | Multi Torch: 8 mm, 12 mm, 16 mm (High Speed Liquid Lens or manual focus lens) Mini: 6.2 mm or 16 mm High Speed Liquid Lens |
| Discrete Inputs | 2 opto-isolated |
| Discrete Outputs | 2 opto-isolated |
| Other I/O Points | 2 user configurable as inputs or outputs |
| Status Outputs | 5 status LEDs, audible beeper |
| Lighting | Multi Torch: High-Powered Multi-Color 4 LED ring light (red, green, blue, white) Mini: 4 LED small form factor light for 6.2mm lens (red, blue, white, IR options) Mini HPIL: 4 LED small form factor high-powered light for 16 mm lens (red, white options) |
| Communications | Ethernet interface |
| Protocols | TCP/IP, PROFINET, EtherNet/IP™, SLMP, OPC/UA, FTP |
| Power | 24V +/- 10% |
| Power Consumption | ≤7.5W |
| Material | ABS, Acrylic, Aluminum alloy, NBR, PC, PET, PMMA, Silicone, Silicone rubber, Stainless steel, TVP, Zinc alloy |
| Weight | 6.2 mm: 141 g; 16 mm: 169 g; Multi Torch: 290 g; Right angle configuration adds 50 g |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Storage Temperature | -10–60 °C (14–140 °F) |
| Operating and Storage Humidity | <95% non-condensing |
| Protection | IP67 |
| RoHS Certified | Yes |
| Approvals | EU CE, US FCC, TUV CB NRTL IEC 61010 |
| Software | In-Sight Vision Suite |
| In-Sight EasyBuilder access | ✓ |
| In-Sight spreadsheet access | N/A |
| Working Distance vs. FoV (12mm lens) | Minimum: 50mm w. FoV = 16.8mm x 12.6mm Midpoint: 300mm w. FoV = 100.8mm x 75.6mm Maximum: 500mm w. FoV = 168mm x 126mm |
1 SVGA options are monochrome only.
| Specification | In-Sight 3801M |
|---|---|
| Bit Depth | 8-bit monochrome |
| Frames per Second (Maximum, Full Resolution) | 125 fps |
| Sensor Type | 1/2.3” CMOS, global shutter |
| Sensor Properties | 6.3 mm diagonal 3.45 x 3.45 μm square pixels |
| Maximum Image Resolution (pixels) | 1440 x 1080 |
| Electronic Shutter Speed | 19.5 μs to 200,000 μs |
| Vision System | |
| Memory | 4 GB |
| Lens Type | C-Mount, Cognex High Speed Liquid Lens Autofocus, or Cognex manual focus lens (used with Multi-Torch Illumination accessory). |
| Trigger | 1 opto-isolated, acquisition trigger input. |
| Discrete Inputs | 1 opto-isolated, acquisition trigger input. Up to 3 general-purpose inputs when connected to the Breakout cable. |
| Discrete Outputs | Up to 4 high-speed outputs when connected to the Breakout cable. |
| Status LEDs | Pass/Fail LED and Indicator Ring, Network LED and Error LED. |
| High Speed Liquid Lens Lifespan | Number of Focus Cycles: 1800 M cycles |
| Job/Program Memory | 7.2 GB non-volatile flash memory; unlimited storage via remote network device. |
| Image Processing Memory | 512 MB SDRAM |
| Network Communication | 2 Ethernet ports, 10/100/1000 BaseT with auto MDIX. IEEE 802.3 TCP/IP Protocol. 1 USB-C port (supports direct connection to In-Sight Vision Suite on a PC, no factory floor protocols supported) Supports DHCP, static, and link-local IP address configuration. One port supports TSN networks. |
| Communication Protocols | TCP/IP, PROFINET, EtherNet/IP, SLMP, ModbusTCP, (S)FTP, RS-232C |
| Power Consumption | 24 V DC ± 10%, 2.0 A maximum. |
| Power Output | 24 V DC at 1.0 A maximum to external light. |
| Material | Die-cast Zinc housing. |
| Finish | Painted. |
| Mounting | Four M3 threaded mounting holes. See Accessories for supported mounts. Pattern: 38.5 × 58.5 mm (1.52 × 2.60 in) |
| Weight | In-Sight 3800 with no accessories attached: 570 g (20.10 oz). With 45 mm plastic C-Mount cover (COV-380-CMNT-45): 625 g (22.0 oz.) – no lens included. With 60 mm plastic C-Mount cover (COV-380-CMNT-60): 635 g (22.4 oz.) – no lens included. With 75 mm plastic C-Mount cover (COV-380-CMNT-75): 650 g (22.9 oz.) – no lens included. With Multi-Torch Illumination, High Speed Liquid Lens (16 mm), and standard front cover: 840 g (29.6 oz.). With Multi-Torch Illumination, High Speed Liquid Lens (16 mm), and dome attachment: 970 g (34.2 oz.) With Red Torch-HR Illumination, High Speed Liquid Lens (25mm): 2935 g (103.5 oz.) With White Torch-HR Illumination, High Speed Liquid Lens (25mm): 2980 g (105.1 oz.) |
| Ambient / Environment Temperature | 0° C to 40° C (32° F to 104° F) |
| Storage Temperature | -20° C to 80° C (-4° F to 176° F) |
| Humidity | <95% non-condensing |
| Protection | IP67 with all cables properly attached (or the provided connector plug installed), the IP67-rated cover, or Multi Torch attachment properly installed. |
| Packaging shock spec (not device itself) | IEC 60068-2-27: 18 shocks (3 shocks in each polarity in each (X, Y, Z) axis) 80 Gs (800 m/s2 at 11 ms, half-sinusoidal) with cables or cable plugs and a 150 gram or lighter lens attached. |
| Vibration | IEC 60068-2-6: vibration test in each of the three main axis for 2 hours at 10 Gs (10 to 500 Hz at 100 m/s2 / 15 mm) with cables or cable plugs and a 150 gram or lighter lens attached. |
| Regulations/Conformity | CE, FCC, KCC, TÜV SÜD NRTL, EU RoHS, China RoHS |
| Working Distance vs. FoV (16mm lens) | Minimum: 150mm w. FoV = 62mm x 46.6mm Midpoint: 500mm w. FoV = 207mm x 155.3mm Maximum: 2000mm w. FoV = 828mm x 621mm |
