Videojet® 3020

The Videojet 3020 Laser Marking System is specifically designed to meet simple coding applications across a wide range of substrates. It’s simple to set-up and operate, and flexible enough to accommodate changing production demands.

Specification
Value
Laser Tube CO2
Maximum Power 10W
Laser Cooling Fan
Maximum Print Speed 500 characters/sec
Maximum Line Speed 60 m/min (197 ft/min)
Environmental Protection IP20
Beam Output Steered Beam
Laser Source Expected Life 30,000 hours
Laser Wavelength Options 10.6 μm
Focal Distance Options 100 mm (3.93 in) – 200 mm (7.87 in)
Maximum Mark Window 125.6 x 87.1 mm (4.94 x 3.43 in)
Standard I/O Connectivity Plug In Connection
User Interface Touch Panel
Plant Air Used No

Simple Usability keeps operators focused on production, not on the printer:
  • Touchscreen user interface has built-in tools and wizards that guide you through code creation, job set-up and changeover to reduce operator errors
  • Extra-large marking field enables accurate coding in multiple locations, enabling more content to be marked across a larger area
  • Print at speeds up to 500 characters/sec
  • Maximum line speed of 60 m/min (197 ft/min)
Uptime Advantage keeps productivity up and costs down:
  • Portable and lightweight, the 3020 is designed to aid simple changeover. Setting up for different size products takes less than 20 minutes by adjusting the 3020’s mobile stand
  • Long-life laser tube provides years of reliable operation
Delivering consistent high quality codes across a range of simple applications:
  • Scribing technology produces clear, high quality marks on both moving and stationary products
  • Internal laser cooling, built upon efficient laser design, does not require external air sources, saving money
  • Compact, self-contained design integrates nicely in existing production lines; the 3020 can be positioned in a variety of angles and heights

Additional Applications

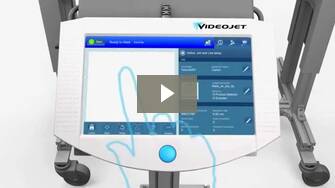

3020 Introduction
